مشخصات فنی Technical Specifications
Interface: 3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Nano SIM Card Slot
Button: WPS/RESET Button, Wi-Fi ON/OFF Button
External Power Supply: 12V/1A
Dimensions ( W x D x H ): 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)
Antenna: 2 Detachable External 4G LTE Antennas
Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz
Reception Sensitivity: 5 GHz: 11a 54M: -78 dBm 11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm 11ac VHT40MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm 11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm 11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm
Transmit Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover: Yes
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type: 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz) TDD-LTE B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)
Quality of Service: Prioritizes network traffic by device or application Operating Modes 3G/4G Router, Wireless Router
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management: Access Control, Local Management, Remote Management, reboot schedule
DHCP: Server, DHCP Client List, Address Reservation Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP, TP-Link DDNS Access Control
Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
Protocols: Supports IPv4 and IPv6
Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1
VPN Server: PPTP VPN, OpenVPN
Certification: CE, RoHS

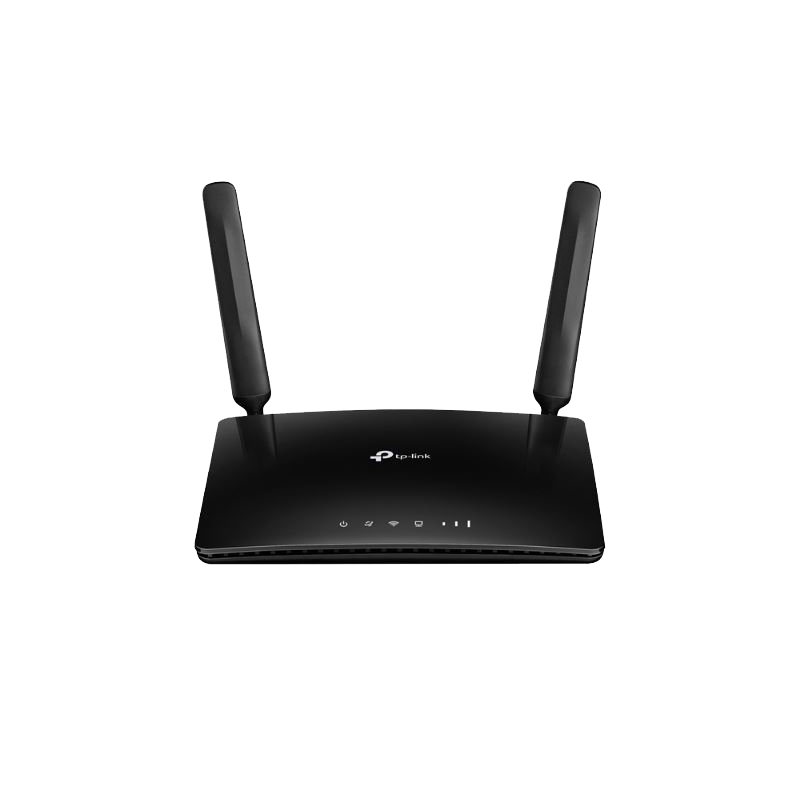

Package Contents: AC750 Wireless Dual Band 4G LTE Router Archer MR200 RJ45 Ethernet Cable Power Adapter Quick Installation Guide
System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Nano SIM Card
Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
