مشخصات فنی Technical Specifications
Working Modes: Range Extender/Access Point
Plug Type: EU, UK, US
Standards and Protocols: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface: 1 * 10/100Mbps Ethernet Port (RJ45)
Ports: 1 x 10/100Mbps Ethernet Port (RJ45)
Button: RE (Range Extender) Button, Reset Button
Input Power: 100-240V~50/60Hz
Power Consumption: About 3W
Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Antenna: 2 * external
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.4~2.4835GHz
Signal Rate: 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic)
Reception Sensitivity: 270M: -69dBm@10% PER 130M: -69dBm@10% PER 108M: -69dBm@10% PER 54M: -69dBm@10% PER 11M: -86Bm@8% PER 6M: -89dBm@10% PER 1M: -91dBm@8% PER
Transmit Power: < 20 dBm (EIRP)
Wireless Modes: Range Extender
Wireless Functions: WMM (Wi-Fi Multimedia) Wireless MAC Address Filtering Wireless Statistic Domain Login Function
Wireless Security: 64/128/152-bit WEP WPA-PSK / WPA2-PSK
Transmission Power: CE: <15dBm
Certification: RoHS

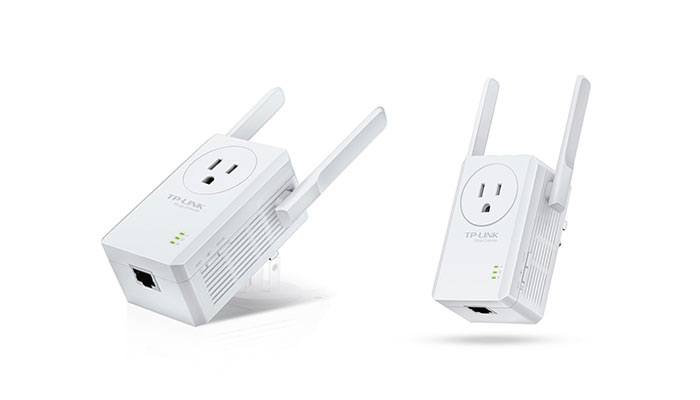

Package Contents: 300Mbps Wi-Fi Range Extender with AC Passthrough TL-WA860RE RJ-45 Ethernet Cable Quick Installation Guide
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux
Environment: Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating
Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
